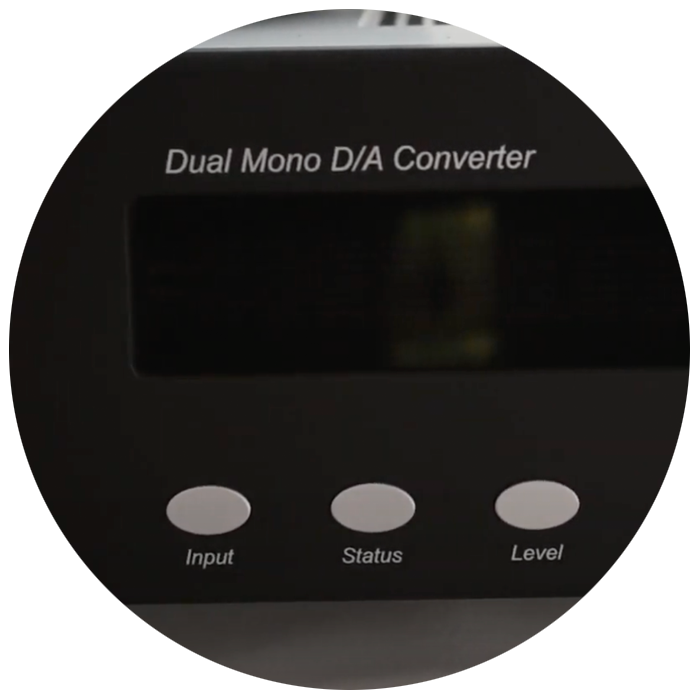

Bricasti M21 Dual Mono Preamp & DAC
Bricasti’s 'Classic Series’ M21 is a natural evolution of both the M1 Special Edition and M12 Dual Mono Source Controller models.
This item is no longer available
Please call 03301 222500 for further information.
£16699.00 inc VAT
ETA 1-2 WEEKS
ETA 1-2 WEEKS
SKU BRC-M21
- Three DA paths
- Switchable Delta Sigma, ladder DAC or 1-bit DSD
- All digital input types supported
- Direct outputs
- Hardwire bypass
- DNLA discoverable
- Made by hand in USA
M21 connects seamlessly into any home network as a powerful media renderer, recognisable as a DNLA device and capable of transmitting pristine, long distance data with no loss or degradation of signal.
Switchable DA Paths
Sporting incredibly advanced architecture, the M21 can select up to three independent digital-to-analogue paths: 24 bit delta sigma, 20 bit ladder dac and true 1 bit DSD for all DSD content.
True Bypassable
All digital input types are supported, and a direct output is available along with hardwire bypass functionality to skip the M21’s analogue attenuator circuit.
Jitter
8 psec @ 48k / 6 psec @ 96k
Impedance
40 ohm
Output Level
90db in 1 db steps
Conversion
PCM 24 bit delta sigma 8x oversampling, DSD direct 1 bit, 384Khz ladder DAC
Frequency Response
10 hz- 20 kHz +0dB, -.2 dB (@ 44.1k)
Dynamic Range
>120dB A-Weighted
THD+N
.0008% @ 0dbfs / .0004% @-30dbfs PCM sigma delta< (@ 1k)
Dimensions
43.2 x 30.5 x 11.4cm (HxWxD), 6.8kg
